Best YAGUANG UV Curing System for Gravure Printing Machine Factory, Products

Installing a UV drying system on the gravure printingÂ press is a technical modification solution that integrates UV curing modules into existing equipment to achieve instantaneous drying of inks or coatings, thereby improving printing efficiency and quality.

Send Inquiry

Product Description

Core Advantages

High-Efficiency Energy Saving The UV drying system cures ink instantly within 0.1-3 seconds through UV light, significantly reducing the waiting time associated with traditional hot air drying and greatly enhancing production efficiency. UV inks do not require high-temperature baking, leading to a 30%-50% reduction in energy consumption.

Environmental Safety UV inks are free from volatile organic compounds (VOCs). The curing process produces no exhaust emissions, complying with green printing standards and reducing environmental pollution.

Enhanced Printing Quality Cured ink layers exhibit high hardness and strong adhesion with excellent surface gloss. Ideal for high-demand printing on substrates like metal and plastic films.

Strong Compatibility The system can be flexibly installed on various types of flexographic presses, supporting paper, films, and metals. It supports both conventional and UV inks for mixed printing modes.

Technical Details & Modification

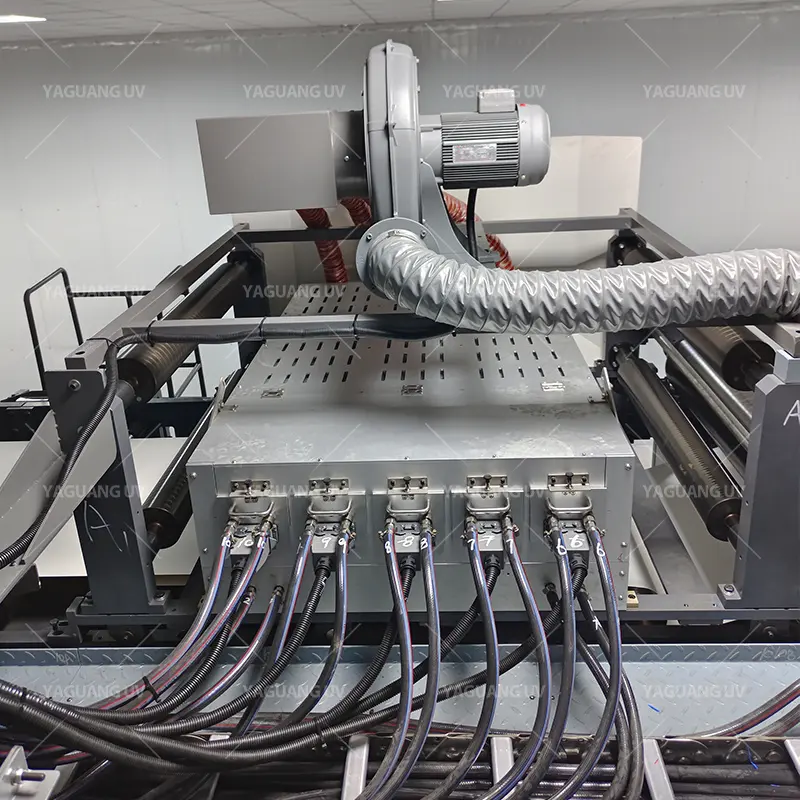

System Components Includes UV lamps (metal halide or UV-LED), reflector housings, cooling devices (water-cooled or air-cooled), and intelligent control systems.

Modification Details Installation is customized based on press structure. Optimized light source layout ensures uniform irradiation. Cooling systems are synchronized to prevent equipment overheating.

Customized Solutions Modular retrofit services are available, supporting advanced features like stepless dimming and nitrogen protection for high-speed embossing requirements.

Application Effects

After installation, flexographic presses can reduce production downtime by over 30%. This expansion allows for high-end production in cigarette packaging, laser anti-counterfeiting, and optical films. The overall cost recovery period is typically achieved within 1-2 years.

Frequently Asked Questions

How fast is the UV curing process?

The system provides near-instant curing, typically taking only 0.1 to 3 seconds depending on the substrate and ink type.

Can this system be installed on any flexo press?

Yes, the system is designed for strong compatibility and can be flexibly installed on various brands and models of flexographic and gravure printing machines.

What are the environmental benefits of UV curing?

UV inks contain no VOCs (Volatile Organic Compounds), and since the process doesn't involve solvent evaporation, there are no harmful exhaust emissions.

How much energy can I save by switching to UV?

Compared to traditional hot air drying methods, the UV system can reduce energy consumption by approximately 30% to 50%.

What substrates are compatible with this system?

It supports a wide range of materials including various papers, plastic films, and metallic substrates.

What is the expected ROI for the system?

Due to increased production speed and lower energy costs, most businesses recover their investment within 1 to 2 years.
